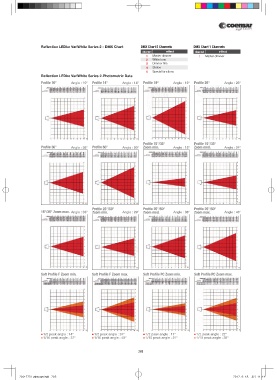

Reflection LEDko VariWhite Series 2 - DMX Chart DMX Chart 5 Channels DMX Chart 1 Channels
channel effect channel effect
1 Master dimmer 1 Master dimmer
2 White tone
3 Dimmer fine
4 Strobe
5 Special functions
Reflection LEDko VariWhite Series 2-Photometric Data
Profile 10° Angle : 10° Profile 14° Angle : 14° Profile 19° Angle : 19° Profile 26° Angle : 26°

Profile 15°/35° Profile 15°/35°
Profile 36° Angle : 36° Profile 50° Angle : 50° Zoom min. Angle : 15° Zoom med. Angle : 24°

Profile 25°/50° Profile 25°/50° Profile 25°/50°
15°/35° Zoom max. Angle : 33° Zoom min. Angle : 29° Zoom med. Angle : 38° Zoom max. Angle : 46°

Reflection LEDko VariWhite Series 2 - Drawing Size

Soft Profile F Zoom min. Soft Profile F Zoom max. Soft Profile PC Zoom min. Soft Profile PC Zoom max.

■1/2 peak angle : 14° ■1/2 peak angle : 24° ■1/2 peak angle : 11° ■1/2 peak angle : 22°
■1/10 peak angle : 27° ■1/10 peak angle : 40° ■1/10 peak angle : 21° ■1/10 peak angle : 38°

205
