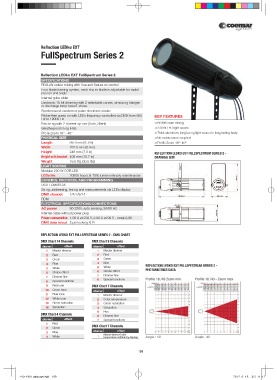

Reflection LEDko EXT
FullSpectrum Series 2

Reflection LEDko EXT FullSpectrum Series 2
SPECIFICATIONS
RBG+W colour mixing with Hue and Satura on control
Four blade framing system, each shu er blade is adjustable for radial
posi on and angle
Internal gobo older
Electronic 16 bit dimming with 2 selectable curves, simula ng halogen
or discharge lamp based xtures
Synchronized, random or pulse electronic strobe
Flicker-free opera on with LEDs frequency controlled via DMX from 600
Hz to 19000 Hz KEY FEATURES
Fan se ng with 2 di erent op ons (Auto, Silent) ≫RGBW color mixing
Weatherproof ra ng IP65 ≫230 W LED light source
Pro le zoom 18° - 40° ≫Thick aluminum, long las ng light source in long lasting body
PHYSICAL SIZE ≫No maintenance required
Length 687.8 mm (25.9 in) ≫Profile Zoom 18°- 40°
Width 252.6 mm (8.4 in)
Height 248 mm (7.0 in) REFLECTION LEDKO EXT FULLSPECTRUM SERIES 2 -
Height with bracket 405 mm (15.7 in) DRAWING SIZE
Weight 16.0 Kg (30.8 lbs)
LIGHT SOURCE
Modular 230 W COB LED
LEDs life 20000 hours at 70% lumen intensity maintenance
CONTROL PROTOCOL AND PROGRAMMING
USITT DMX512A
Se ng, addressing, tes ng and measurements via LEDs display
DMX channel 1/4/7/8/14
RDM
ELECTRICAL SPECIFICATIONS/CONNECTIONS
AC power 90-230V, auto sensing, 50/60 Hz
Internal cable without power plug
Power consumotion 1.06 A at 230 V, 2.80 A at 90 V - cosφ 0,99
DMX data in/out 5 pin locking XLR

REFLECTION LEDKO EXT FULLSPECTRUM SERIES 2 - DMX CHART
DMX Chart 14 Channels DMX Chart 8 Channels
channel effect channel effect
1 Master dimmer 1 Master dimmer
2 Red 2 Red
3 Green 3 Green
4 Blue 4 Blue REFLECTION LEDKO EXT FULLSPECTRUM SERIES 2 -
5 White 5 White PHOTOMETRICS DATA
Strobe effect
6 Strobe effect 6 Dimmer fine
7 Dimmer fine 7 Special functions Profile 18 /40 Zoom min. Profile 18 /40 - Zoom max.
8 Special functions 8
9 Red tone DMX Chart 7 Channels
10 Green tone channel effect
11 Blue tone 1 Master dimmer
12 White tone 2 Color temperature
13 Green saturation 3 Green saturation
14 Saturation 4 Saturation
5 Hue
DMX Chart 4 Channels Dimmer fine
6
channel effect 7 Special functions
1 Red
2 Green DMX Chart 7 Channels
effect
3 Blue channel Master dimmer (color
4 White 1 temperature settable by display) Angle : 18 Angle : 40

199
