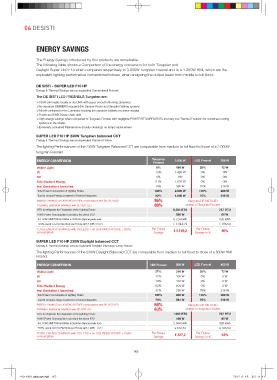

Page 164 - 루스케이프 방송무대 지명원

04 DESISTI

ENERGY SAVINGS

The Energy Savings introduced by this products are remarkable.
The following table shows a Comparison of the energy conversion for both Tungsten and
Daylight Super LED F14 when compared respectively to 3.000W Tungsten Fresnel and to a 1.200W HMI, which are the
equivalent lighting performance conventional fixtures, when analysing the output beam from middle to full flood:

DE SISTI - SUPER LED F10 HP
Energy & Thermal Savings versus equivalent Conventional Fixtures
The DE SISTI LED FRESNELS Tungsten are:
≫100% Dimmable locally or via DMX with super smooth dimming dynamics
≫No separate DIMMERS required (No Dimmer Room and Simpler Cabling system)
≫All self contained in the Luminaire housing (no separate ballasts or power supply)
≫Power and DMX Daysy chain able
≫ High energy savings when compared to Tungsten Fixtures with negligible POWER REQUIREMENTS and very low Thermal Emission for contained cooling
systems in the studio.
≫Extremely contained Maintenance (mostly cleaning): no lamps replacement

SUPER LED F10 HP 230W Tungsten balanced CCT
Energy & Thermal Savings versus equivalent Filament Fixture
The lighting Performances of the 230W Tungsten Balanced CCT are comparable from medium to full flood to those of a 2.000W
tungsten Fresnels

Tungsten
ENERGY CONVERSION 2.000 W LED Fresnel 288 W
Fresnel
Visible Light 8% 160 W 25% 72 W
IR 73% 1.460 W 0% 0W
UV 0% 0W 0% 0W
Total Radiant Energy 81% 1.620 W 0% 0W
Heat (Conduction + Convection) 19% 380 W 75% 216 W
Total Power Consumption of Lighting Fixture 100% 2.000 W 100% 288 W
Total % of Input Energy converted in Thermal Dissipation 92% 1.840 W 75% 216 W
ENERGY SAVINGS on LIGHTING FIXTURE consumptiom with DE SISTI LED 86% Using the DE SISTI LED
THERMAL EMISSION SAVINGS with DE SISTI LED 88% instead of Tungsten Fixtures
BTU to refrigerate the Dissipation of the Lighting Fixture 6.280 BTU 737 BTU
HVAC Power Consumption to produce the above BTU 586 W 69 W
Tot. CONSUMPTION in kWhrs in 2600 hrs (typical yearly use) 6.724 kWh 928 kWh
TOTAL yearly cost for Electricity per Fixture with 1 kWh = 0,2 € € 1.344,79 € 185,54
TOTAL ENERGY SAVINGS with DS LEDS = on LIGHTING FIXTURE + HVAC Per Fixture Per Fixture
consumptiom Savings € 1.159,2 Savings in % 86%

SUPER LED F10 HP 230W Daylight balanced CCT
Energy & Thermal Savings versus equivalent Daylight Discharge Lamp Fixture
The lighting Performances of the 230W Daylight Balanced CCT are comparable from medium to full flood to those of a 800W HMI
Fresnel.

ENERGY CONVERSION HMI Fresnel 800 W LED Fresnel 400 W

Visible Light 27% 216 W 25% 72 W
IR 17% 136 W 0% 0 W
UV 19% 152 W 0% 0 W
Total Radiant Energy 63% 504 W 0% 0 W
Heat (Conduction + Convection) 37% 296 W 75% 216 W
Total Power Consumption of Lighting Fixture 100% 800 W 100% 288 W
Total % of Input Energy converted in Thermal Dissipation 73% 584 W 75% 216 W
ENERGY SAVINGS on LIGHTING FIXTURE consumptiom with DE SISTI LED 64% Using the DE SISTI LED
THERMAL EMISSION SAVINGS with DE SISTI LED 63% instead of Tungsten Fixtures
BTU to refrigerate the Dissipation of the Lighting Fixture 1.993 BTU 737 BTU
HVAC Power Consumption to produce the above BTU 186 W 69 W
Tot. CONSUMPTION in kWhrs in 2600 hrs (typical yearly use) 2.564 kWh 928 kWh
TOTAL yearly cost for Electricity per Fixture with 1 kWh = 0,2 € € 512,74 € 185,54
TOTAL ENERGY SAVINGS with DS LEDS = on LIGHTING FIXTURE + HVAC Per Fixture Per Fixture
consumptiom Savings € 327,2 Savings in % 64%
