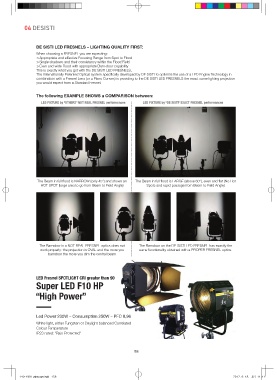

Page 160 - 루스케이프 방송무대 지명원

04 DESISTI

DE SISTI LED FRESNELS – LIGHTING QUALITY FIRST:
When choosing a FRESNEL you are expecting:
≫Appropriate and effective Focusing Range from Spot to Flood
≫Single shadows and their consistency within the Flood Field
≫Even and wide Flood with appropriate Barn-door capability
This is exactly what you get with the DE SISTI LED FRESNELS.
The Internationally Patented Optical system specifically developed by DE SISTI to optimize the use of a LED Engine Technology in
combination with a Fresnel Lens (or a Plano Convex) is providing to the DE SISTI LED FRESNELS the exact same lighting projection
you would expect from a Standard Fresnel.

The following EXAMPLE SHOWS a COMPARISON between:
LED FIXTURE by “OTHERS” NOT REAL FRESNEL performances LED FIXTURE by “DE SISTI” EXACT FRESNEL performances

The Beam in full flood is NARROW (only 45°) and shows an The Beam in full flood is LARGE (above 60°), even and flat (No Hot
HOT SPOT (large area to go from Beam to Field Angle) Spots and rapid passage from Beam to Field Angle)

The Barndoor in a NOT REAL FRESNEL optics does not The Barndoor on the DE SISTI LED FRESNEL has exactly the
work properly: the projection is OVAL and the more you same functionality obtained with a PROPER FRESNEL optics.
barndoor the more you dim the central beam

LED Fresnel SPOTLIGHT CRI greater than 90
Super LED F10 HP

“High Power”

Led Power 230W – Consumption 250W – PFC 0,96
White light, either Tungsten or Daylight balanced Correlated
Colour Temperature
IP23 rated: “Rain Protected”
