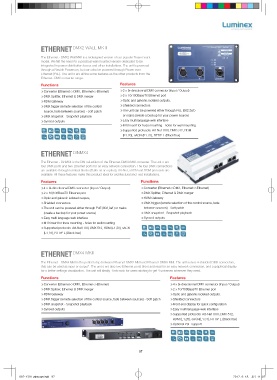

ETHERNET DMX2 WALL MK II
The Ethernet - DMX2 Wall MkII is a redesigned version of our popular Truss mount
model. We felt the need for a practical wall mounted version dedicated to be
integrated in power distribution boxes and other installations. The unit is powered
through a Neutrik Powercon, but can also be powered through Power over
Ethernet (PoE). The unit o ers all the same features as the other products from the
Ethernet- DMX converter range.
Functions Features
≫Converter (Ethernet<>DMX, Ethernet<>Ethernet) ≫2 x bi-directionnal DMX connector (Input / Output)
≫DMX Splitter, Ethernet & DMX merger ≫2 x 10/100BaseTX Ethernet port
≫RDM Gateway ≫Optic and galvanic isolated outputs.
≫ DMX trigger (remote selection of the control ≫Shielded connectors
source, fade between sources) - Soft patch ≫ The unit can be powered either through PoE (802.3af )
≫DMX snapshot - Snapshot playback or mains (create a backup for your power source)
≫Synced outputs ≫Easy multi language web interface
≫M10 insert for truss mounting - holes for wall mounting
≫ Supported protocols: Art-Net I II III, DMX 512, RDM
(E1.20), sACN (E1.31), RTTrP-L (BlackTrax)

ETHERNET DINMX4

The Ethernet - DinMX4 is the DIN rail edition of the Ethernet-DMX4 MkII converter. The unit o ers
four DMX ports and two Ethernet ports for an easy network connection. The four DMX connections
are available through terminal blocks (RJ45 as an option). Art-Net, sACN and RDM protocols are
available. All these features make this product ideal for architectural and xed installations.
Features Functions
≫4 x bi-directionnal DMX connector (Input / Output) ≫Converter (Ethernet<>DMX, Ethernet<>Ethernet)
≫2 x 10/100BaseTX Ethernet port ≫DMX Splitter, Ethernet & DMX merger
≫Optic and galvanic isolated outputs. ≫RDM Gateway
≫Shielded connectors ≫ DMX trigger (remote selection of the control source, fade
≫ The unit can be powered either through PoE (802.3af ) or mains between sources) - Soft patch
(create a backup for your power source) ≫DMX snapshot - Snapshot playback
≫Easy multi language web interface ≫Synced outputs
≫M10 insert for truss mounting - holes for wall mounting
≫ Supported protocols: Art-Net I II III, DMX 512, RDM (E1.20), sACN
(E1.31), RTTrP-L (BlackTrax)

ETHERNET DMX4 MKII
The Ethernet - DMX4 MkII is the perfect step between Ethernet-DMX2 MkII and Ethernet-DMX8 MkII. The unit serves 4 shielded DMX connectors,
that can be used as input or output*. The unit o ers also two Ethernet ports (front and rear) for an easy network connection, and a graphical display
for a better settings visualization. The unit will ideally t into rack for users wishing to get 4 universes wherever they need.
Functions Features
≫Converter (Ethernet<>DMX, Ethernet<>Ethernet) ≫4 x bi-directionnal DMX connector (Input / Output)
≫DMX Splitter, Ethernet & DMX merger ≫2 x 10/100BaseTX Ethernet port
≫RDM Gateway ≫Optic and galvanic isolated outputs.
≫ DMX trigger (remote selection of the control source, fade between sources) - Soft patch ≫Shielded connectors
≫DMX snapshot - Snapshot playback ≫Front end display for quick configuration
≫Synced outputs ≫Easy multi language web interface
≫ Supported protocols: Art-Net I II III, DMX 512,
RDM (E1.20), sACN(E1.31), RTTrP-L (BlackTrax)
≫Optional PoE support
