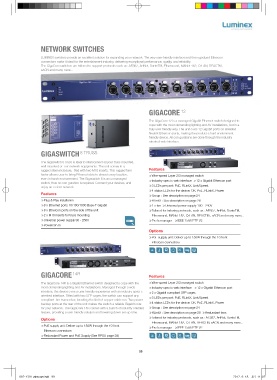

NETWORK SWITCHES
LUMINEX switches provide an excellent solution for expanding your network. The very user-friendly interface and the rugodized Ethercon
connectors make it ideal for the entertainment industry, delivering exceptional performance, quality, and reliability.
The GigaCore switches are tailored to support protocols such as: AES67, ArtNet, DanteTM, Ethersound, MANet 1&2, Q-LAN, REACTM ,
sACN and many more...

GIGACORE 12

The GigaCore 12 is a managed Gigabit Ethernet switch designed to
cope with the most demanding lighting and AV installations, but in a
truly user friendly way. The unit o ers 12 Gigabit ports on shielded
Neutrik Ethercon ports, making the product a hard environment
friendly device. All con gurations are done through the industry
oriented web interface.

GIGASWITCH 8 TRUSS

The Gigaswitch 8 Truss is ideal to interconnect all your truss mounted,
wall mounted or oor network equipments. The unit comes in a
rugged steel enclosure, tted with two M10 inserts. This rugged form Features
factor allows user to bring Ethernet data to almost every location, ≫Wire-speed Layer 2/3 managed switch
even in harsh environement. The Gigaswitch 8 is an unmanaged ≫Industry speci c web interface ≫12 x Gigabit Ethercon port
switch, thus no con guration is required. Connect your devices, and
enjoy an e cient network. ≫3 LEDs per port: PoE, RLinkX, Link/Speed
≫4 status LEDs for the device: OK, PoE, RLinkX, Power
Features ≫Group : See description on page 24
≫Plug & Play installation ≫RLinkX : See description on page 28
≫8 x Ethernet ports 10/100/1000 Base-T Gigabit ≫1 x fan ≫Universal power supply 100 - 240V
≫8 x Ethercon ports on the side of the unit ≫ Tailored for industry protocols, such as : AES67, ArtNet, DanteTM,
≫2 x M10 inserts for truss mounting Ethersound, MANet 1&2, Q-LAN, REACTM , sACN and many more...
≫Universal power supply 90 - 260V ≫Pro le manager ≫IEEE 1588 PTP V2
≫Powercon In
Options
≫ PoE supply unit: Deliver up to 150W through the 10 front
Ethercon connectors

GIGACORE 14R Features
The GigaCore 14R is a Gigabit Ethernet switch designed to cope with the ≫Wire-speed Layer 2/3 managed switch
most demanding lighting and AV installations. Managed through a web ≫Industry speci c web interface ≫12 x Gigabit Ethercon port
interface, the device o ers a user friendly experience with an industry speci c ≫2 x Gigabit compliant SFP cages
oriented interface. Fitted with two SFP cages, the switch can support any ≫3 LEDs per port: PoE, RLinkX, Link/Speed
compliant ber transceiver, breaking the limit of copper cable run. Two power
backup ports at the rear of the unit makes the switch a reliable Gigabit core ≫4 status LEDs for the device: OK, PoE, RLinkX, Power
for your network. The GigaCore 14R comes with a bunch of industry oriented ≫Group : See description on page 24
feature, providing a user friendly solution and lowering down set-up time. ≫RLinkX : See description on page 28 ≫Redundant fans
≫ Tailored for industry protocols, such as : AES67, ArtNet, DanteTM,
Options
Ethersound, MANet 1&2, Q-LAN, REACTM, sACN and many more...
≫ PoE supply unit: Deliver up to 150W through the 10 front ≫Pro le manager ≫IEEE 1588 PTP V2
Ethercon connectors
≫Redundant Power and PoE Supply (See RPSU page 28)
