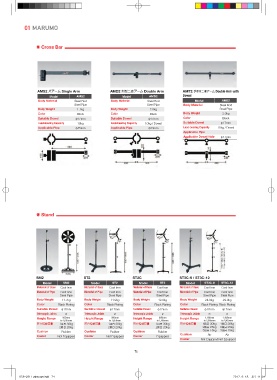

01 MARUMO

⁕ Cross Bar

AMS2 片アーム Single Arm AMD2 割型二連アーム Double Arm AMT2 ダボ付二連アーム Double Arm with
Dowel
Model AMS2 Model AMD2
Body Material Steel Rod Body Material Steel Rod Model AMS2
Steel Pipe Steel Pipe Body Material Steel Rod
Body Weight 1.1kg Body Weight 2.0kg Steel Pipe
Color Black Color Black Body Weight 2.0kg
Suitable Dowel φ17mm Suitable Dowel φ17mm Color Black
Load-bearing Capacity 10kg Load-bearing Capacity 10kg / Dowel Suitable Dowel φ17mm
Applicable Pipe φ45mm Applicable Pipe φ34mm Load-bearing Capacity 10kg / Dowel
Applicable Pipe —
Applicable Dowel Hole φ17mm

⁕ Stand

SM2 ST2 ST2C ST3C-9 / ST3C-12
Model SM2 Model ST2 Model ST2 Model ST3C-9 ST3C-12
Material of Base Cast Iron Material of Base Cast Iron Material of Base Cast Iron Material of Base Cast Iron Cast Iron
Material of Pipe Cast Iron Material of Pipe Cast Iron Material of Pipe Cast Iron Material of Pipe Cast Iron Cast Iron
Steel Pipe Steel Pipe Steel Pipe Steel Pipe Steel Pipe
Body Weight 11.7kg Body Weight 11.9kg Body Weight 12.6kg Body Weight 24.9kg 29.0kg
Color Black Plating Color Black Plating Color Black Plating Color Black Plating Black Plating
Suitable Dowel φ17mm Suitable Dowel φ17mm Suitable Dowel φ17mm Suitable Dowel φ17mm φ17mm
Telescopic Joints 2 Telescopic Joints 2 Telescopic Joints 2 Telescopic Joints 3 3
935mm 950mm 985mm 1,165mm 1,165mm
Height Range Height Range Height Range Height Range
to 1,635mm to 1,650mm to 1,685mm to 2,805mm to 2,805mm
許容積載質量 1段目 30kg 許容積載質量 1段目 30kg 許容積載質量 1段目 30kg 許容積載質量 1段目 30kg 1段目 30kg
2段目 20kg 2段目 20kg 2段目 20kg 2段目 25kg 2段目 25kg
Cushion Rubber Cushion Rubber Cushion Rubber 3段目 15kg 3段目 15kg
Caster Not Equipped Caster Not Equipped Caster Equipped Cushion Air Air
Caster Not EquippedNot Equipped

74
