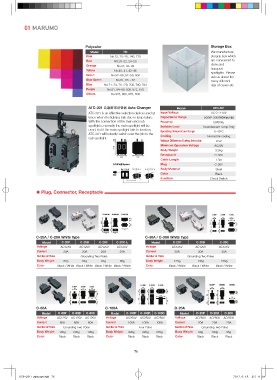

01 MARUMO

Polycolor Storage Box
Model No We manufacture
Pink No.12, 15~18, 140, 170 storage box which
Red N0.20~22, 24~26 are convenient to
Orange No.31, 33~38 store and
transport
Yellow No.40, 41, 43~46 spotlights. Please
Green No.52~55, 57~59, 560 ask us about the
Blue Green No.61, 63 ~ 67 many different
Blue No.71~74, 76 ~79, 700, 780, 783 size of cases etc.
Purple No.81, 84~88, 830, 872, 878
Others No.925, 950, 975, D00

ATC-301 自動断球切替器 Auto Changer Model ATC-301
ATC-301 is an effective selection device used at Input Voltage AC 0 ~110V
times when the lighting fails due to lamp failure. Capacitance Range 500W~3000W(連続定格)
With the connection of the main and sub Freqency 50/60Hz
spotlights, normally the main spotlight will be Suitable Load Incandescent Lamp Only
used, but if the main spotlight fails to function, 5~40°C
ATC-301 will instantly switch over the job to the Operating Temperature Range
sub spotlight. Cooling Normal Air-cooling
Voltage Difference During Selection 0.5V
Minimum Operation Voltage AC20V
Body Weight 3.3kg
Receptacle C-30C
Cable Length 1.5m
Plug C-30P
Body Material Steel
Color Black
Function Check Switch

⁕ Plug, Connector, Receptacle

C-20A / C-20A White Type C-30A / C-30A White Type
Model C-20P C-20B C-20C C-20C-L Model C-20P C-20B C-20C
Voltage AC125V AC125V AC125V AC125V Voltage AC125V AC125V AC125V
Current 20A 20A 20A 20A Current 30A 30A 30A
Number of Poles Grounding Two Poles Number of Poles Grounding Two Poles
Body Weight 67g 84g 84g 86g Body Weight 125g 135g 150g
Color Black / White Black / White Black / White Black / White Color Black / White Black / White Black / White

C-60A C-100A D-20A
Model C-60P C-60B C-60C Model C-100P C-100R C-100C Model D-20P D-20B D-20C
Voltage AC125V AC125V AC125V Voltage AC250V AC250V AC250V Voltage AC250V AC250V AC250V
Current 60A 60A 60A Current 100A 100A 100A Current 20A 20A 20A
Number of Poles Grounding Two Poles Number of Poles Four Poles Number of Poles Grounding Two Poles
Body Weight 180g 230g 190g Body Weight 300g 320g 270g Body Weight 80g 100g 95g
Color Black Black Black Color Black Black Black Color Black Black Black

76
