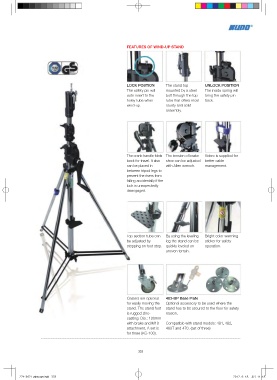

FEATURES OF WIND-UP STAND
LOCK POSTION The stand top UNLOCK POSITION
The safety pin will mounted by a steel The inside spring will
auto insert to the bolt through the top bring the safety pin
holey tube when tube that offers most back.
wind-up. sturdy and solid
assembly.
The crank handle folds The tension of brake Velcro is supplied for
back for travel. It also shoe can be adjusted better cable
can be placed in with Allen wrench. management.
between tripod legs to
prevent the risers from
falling accidentally if the
lock is unexpectedly
disengaged.
Top section tube can By using the leveling Bright color warming
be adjusted by leg the stand can be sticker for safety
stepping on foot step. quickly leveled on operation.
uneven terrain.
Casters are optional 483-BP Base Plate
for easily moving the Optional accessory to be used where the
stand. The stand foot stand has to be secured to the floor for safety
is rugged zinc- reason.
casting. Dia.: 100mm
with brake and M10 Compatible with stand models: 481, 482,
attachment. A set is 483T and 470. (set of three)
for three (KC-100).
