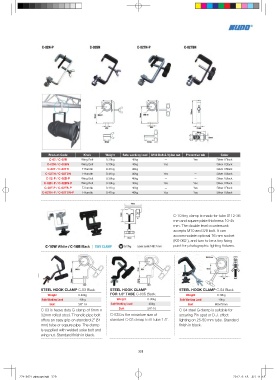

Product Code Knob Weight Safe working load M12 Bolt & Nylon nut Protective tab Color
C-02 / C-02B Wing Bolt 0.39kg 40kg — Yes Silver / Black
C-02N / C-02BN Wing Bolt 0.39kg 40kg Yes — Silver / Black
C-02T / C-02TB T-Handle 0.41kg 40kg — — Silver / Black
C-02TN / C-02TBN T-Handle 0.41kg 40kg Yes — Silver / Black
C-02-P / C-02B-P Wing Bolt 0.39kg 40kg — — Silver / Black
C-02N-P / C-02BN-P Wing Bolt 0.39kg 40kg Yes Yes Silver / Black
C-02T-P / C-02TB-P T-Handle 0.41kg 40kg — Yes Silver / Black
C-02TN-P / C-02TBN-P T-Handle 0.41kg 40kg Yes Yes Silver / Black

C-10 tiny clamp is made for tube Ø 12-36
mm and square plate thickness 10-45
mm. The double level countersunk
accepts M10 and 3/8 bolt. It can
accommodate optional 16 mm socket
(KS-062 ), and turn to be a tiny fixing
point for photographic lighting fixtures.

STEEL HOOK CLAMP C-03 Black STEEL HOOK CLAMP STEEL HOOK CLAMP C-04 Black
Weight 0.43kg FOR 1.5” TUBE C-03S Black Weight 0.19kg
Safe Working Load 40kg Weight 0.30kg Safe Working Load 10kg
Bolt 3/8”-16 Safe Working Load 40kg Bolt M8x75mm
C-03 is heavy duty G clamp of 6mm x Bolt 3/8”-16 C-04 steel G clamp is suitable for
32mm rolled steel. T handle pipe bolt C-03S is the miniature size of securing Pin spot or D.J. effect
offers an easy grip on standard 2” (51 standard C-03 clmap to fit tube 1.5”. lighting on 25-50 mm tube. Standard
mm) tube or sqaure pipe. The clamp finish in black.
is supplied with welded yoke bolt and
wing nut. Standard finish in black.

329
