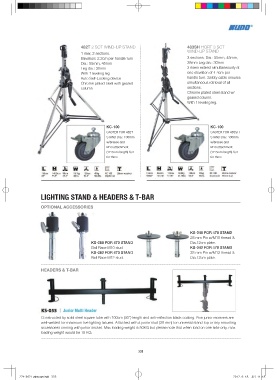

482T 2 SCT WIND-UP STAND 483SH HORT 3 SCT
1 riser, 2 sections. WIND-UP STAND
Elevation: 2.2cm per handle turn 3 sections. Dia.: 55mm, 45mm,
Dia.: 55mm, 45mm 38mm Leg dia.: 30mm
Leg dia.: 30mm 2 risers extend simultaneously at
With 1 leveling leg one elevation of 4.4cm per
Auto Self-Locking device handle turn. Safety cable ensures
Chrome plated steel with geared simultaneous retrieval of all
column sections.
Chrome plated steel stand w/
geared column.
With 1 leveling leg.

KC-100 KC-100
CASTER FOR 482T CASTER FOR 483SH
STAND Dia.: 100mm STAND Dia.: 100mm
w/brakes and w/brakes and
M10 attachment M10 attachment
(17.5mm length) Set (17.5mm length) Set
for three for three

LIGHTING STAND & HEADERS & T-BAR

OPTIONAL ACCESSORIES

KS-040 FOR 470 STAND
28 mm Pin w/M10 thread &
KS-080 FOR 470 STAND Dia.12cm plate.
Ball Race M10 stud KS-042 FOR 470 STAND
KS-082 FOR 470 STAND 28 mm Pin w/M12 thread &
Ball Race M12 stud. Dia.12cm plate.

HEADERS & T-BAR

Constructed by solid steel square tube with 100cm (40’’) length and anti-reflection black coating. Five junior receivers are
well-welded for maximum five lighting fixtures. Attached with a junior stud (28 mm) for universal stand top or any mounting
accessories coming with junior socket. Max loading weight is 50KG but please note that when load on one side only, max
loading weight would be 15 KG.
