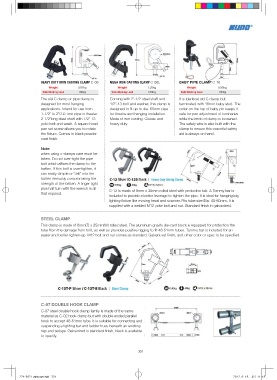

HEAVY DUTY IRON CASTING CLAMP C-06 MEGA IRON CASTING CLAMP C-06L BABY PIPE CLAMP C-16
Weight 0.87kg Weight 1.25kg Weight 0.95kg
Safe Working Load 100kg Safe Working Load 100kg Safe Working Load 100kg
The old C clamp or pipe clamp is Coming with 2”-1/2 steel shaft and It is identical old C clamp but
designed for most hanging 1/2”-13 bolt and washer, this clamp is terminated with 16mm baby stud. The
applications. Intend for use from designed to fit up to dia. 60mm pipe collar on the top of baby pin keeps it
1-1/2” to 2”O.D. iron pipe in theater. for theatre and hanging installation. safe for pan adjustment of luminaries
2-1/2”long steel shaft with 1/2”-13 Made of iron casting. Classic and while the knob of clamp is loosened.
yoke bolt and wash. A square head heavy duty. The safety wire is also built with the
pan set screw allows you to rotate clamp to ensure this essential safety
the fixture. Comes in black powder aid is always on hand.
coat finish.

Note:
when using c-clamps care must be
taken. Do not over-tight the pipe
bolt which affixes the clamp to the
batten. If this bolt is over-tighten, it
can easily dimple or “drill” into the
batten seriously compromising the
strength of the batten. A finger tight
plus half turn with the wrench is all C-12 is made of 8mm x 38mm rolled steel with protective tab. A Tommy bar is
that required. included to provide a better leverage to tighten the pipe. It is ideal for hanging big

lighting fixture like moving head and scanner. Fits tube size Dia. 40-60mm. It is
supplied with a welded M12 yoke bolt and nut. Standard finish in galvanized.

STEEL CLAMP
This clamp is made of 6mm(T) x 25mm(W) rolled steel. The aluminum gravity die-cast block is equipped for protection the
tube from the damage from bolt, as well as provides positive rigging to fit 48-51mm tubes. Tommy bar is included for an
easier and better tighten-up. M12 bolt and nut comes as standard. Galvanized finish, and other color or spec to be specified.

C-07 DOUBLE HOOK CLAMP
C-07 steel double hook clamp family is made of the same
material as C-02 hook clamp but with double ended parallel
hook to accept 48-51mm tube. It is suitable for connecting and
suspending a lighting bar and ladder truss beneath an existing
rigs and setups. Galvanized is standard finish, black is available
to specify.
