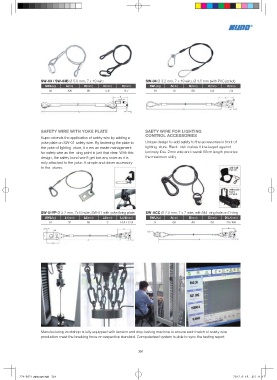

SW-03 / SW-03B Ø 5.0 mm, 7 x 19 wire SW-04 Ø 3.2 mm, 7 x 19 wire, Ø 4.5 mm (with PVC jacket)
SWL(kg) A(cm) B(mm) C(mm) D(mm) SWL(kg) A(cm) B(mm) C(mm) D(mm)
50 100 60 5.8 9.7 10 75 60 5.8 7.8

SAFETY WIRE WITH YOKE PLATE SAETY WIRE FOR LIGHTING
Kupo extends the application of safety wire by adding a CONTROL ACCESSORIES
yoke plate on SW-01 safety wire. By fastening the plate to Unique design to add safety to the accessories in front of
the yoke of lighting xture, it o ers an easier management lighting xture. Black nish makes it low-keyed against
for safety wire as the xing point is just that clear. With this luminary. Dia. 2mm wire and overall 60cm length provides
design, the safety bond won’t get lost any more as it is the maximum utility.
rmly attached to the yoke. A simple and clever accessory
to the xtures.

SW-01YP Ø 3.2 mm, 7x19 wire, SW-01 with yoke fixing plate SW-ACC Ø 2.0 mm, 7 x 7 wire, with M4 xing hole on D-ring
SWL(kg) L1(mm) L2(mm) L3(mm) L4/5(mm) SWL(kg) A(cm) B(mm) C(mm) D/L1(mm)
10 32 58 3 14.5 / 12.5 5 60 50 4.8 70 / M4

Manufacturing workshop is fully equipped with tension and drop testing machine to ensure each batch of safety wire
production meet the breaking force on respective standard. Computerized system is able to sync the testing report.
