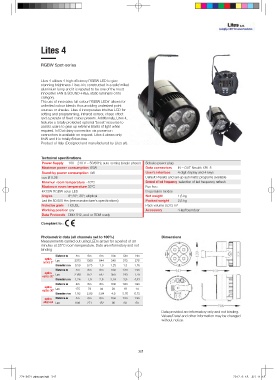

Lites 4

RGBW Spot-series

Lites 4 utilises 4-high efficiency RGBW LED to give
stunning brightness. Lites 4 is constructed in a solid milled
aluminium lump and it is reputed to be one of the most
innovative FAN & SOUND-FREE static luminaire of its
category.
The use of innovative full-colour RGBW LEDs’ allows for
unlimited colour blends thus avoiding undesired point
sources or shades. Lites 4 incorporates intuitive LCD for
setting and programming, infrared sensor, chase effect
and a parade of fixed colour-presets. Additionally, Lites 4,
features a totally protected optional "boost" resource to
assists users to gear up extreme blasts of light when
required. In\Out daisy connection via powercon
connectors is available on request. Lites 4 draws only
65W and it is totally flicker-free .
Product of Italy. (Designed and manufactured by Lites srl).

Technical specifications
Power Supply 100 – 240 V ~ 50/60Hz auto-setting (single-phase) Schuko power plug
Maximun power consumption 65W Data connectors IN – OUT Neutrik XRL 5
Stand-by power consumption 5W User’s interface 4 digit display and 4 keys
cos Ø 0,98 Default Presets and set-up automatic programs available
Minimun room temperature -10°C Control of led frequency selection of led frequency refresh
Maximum room temperature 35°C Fan-free
4X15W RGBW ostar LED 8 operation modes
Angles 8°;20°; 30°; elliptical Net weight 1,6 kg
Led life 50.000 Hrs (see manufacturer’s specifications) Packed weight 2,5 kg
Protection grade HOUSE Pack volume 0,012 m³
Working position any Accessory 4-leaf barndoor
Data Protocols DMX 512, and-or RDM ready

Compliant to :

Photometric data (all channels set to 100%) Dimensions
Measurements carried out using LEDs arrays for a period of 30
minutes at 25°C room temperature. Data are informatory and not
binding

Distance m 4m 6m 8m 10m 12m 14m
optics 3375 1500 844 540 375 276
optics 8° Lux
Diameter ø m 0,50 0,75 1,0 1,25 1,5 1,76
Distance m 4m 6m 8m 10m 12m 14m
optics 2188 972 547 350 243 179
optics 20° Lux
Diameter ø m 1,26 1,9 2,5 3,16 3,8 4,43
Distance m 4m 6m 8m 10m 12m 14m
optics 175 78 44 28 19 14
optics 30° Lux
Diameter ø m 1,92 2,88 3,84 4,8 5,76 6,72
optics Distance m 4m 6m 8m 10m 12m 14m
609 271 152 98 68 50
elliptical Lux
Data provided are informatory only and not binding.
Values/Data/ and other information may be changed
without notice.
