12 ILIGHT

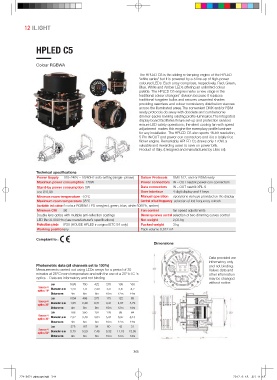

HPLED C5

Colour RGBWA

The HPLED C5 is the sibling re-lamping engine of the HPLED
“white series” but it is powered by a-5 line-up of high-power
coloured LEDs. Each array comprises, respectively, Red, Green,
Blue, White and Amber LEDs offering an unlimited colour
palette. The HPLED C5 engine marks a new stage in the
traditional colour changers’ division because it replaces
traditional tungsten bulbs and secures unwanted shades
providing seamless and colour consistency distribution stances
across the illuminated areas.The convenient DMX and/or RDM
ready protocols do away with obsolete and cumbersome
dimmer-packs reviving existing profile-luminaires.The Integrated
display board facilitates fixture set-up and protection sensors
ensure LED safety operations; the silent cooling fan with speed
adjustment makes this engine the exemplary profile luminare
for any installation. The HPLED C5 also sports 16-bit resolution,
5 Pin IN/OUT and power-con connectors and it is a totally free-
flicker engine. Remarkably HPLED C5 draws only 170W, a
valuable and rewarding asset to save on power bills.
Product of Italy. (Designed and manufactured by Lites srl).

Technical specifications
Power Supply 100–240V ~ 50/60Hz auto-setting (single- phase) Datum Protocols DMX 512, and-or RDM ready
Maximun power consumption 170W Power connectors IN – OUT neutrik power-con connectors
Stand-by power consumption 5W Data connectors IN – OUT neutrik XRL 5
cos Ø 0,98 User interface 4 digit display and 4 keys
Minimun room temperature -10°C Manual operation operations via keys provided on the display
Maximum room temperature 35°C Control of led frequency selection of led frequency refresh
Available led colour 5-colour RGBWA LED array(red, green, blue, white 5000°k, amber)
Minimun CRI 90 Fan control fan speed adjustments
Double lens optics with multiple anti-reflection coatings Dimming curves control selection of two dimming curves control
LED life 50.000 Hrs (see manufacturer’s specifications) Net weight 2,03 kg
Protection grade IP20 (HOUSE HPLED in original ETC S4 only) Packed weight 3 kg
Working positionany Pack volume 0,012 m³

Compliant to :
Dimensions

Data provided are
informatory only
Photometric data (all channels set to 100%) and not binding.
Measurements carried out using LEDs arrays for a period of 30 Values data and
minutes at 25°C room temperature and with the use of a 25° ETC ‘s other information
optics. . Data are informatory and not binding may be changed
Lux 1688 750 422 270 188 138 without notice.
Source 4 1,20 1,8 2,40 3,0 3,6 4,2
optics 19° Diameter ø m
Distance m 4m 6m 8m 10m 12m 14m
Lux 1094 486 273 175 122 89
Source 4 1,65 2,48 3,31 4,41 4,97 5,79
optics 26° Diameter ø m
Distance m 4m 6m 8m 10m 12m 14m
Lux 788 350 197 126 88 64
Source 4 2,32 3,48 4,64 5,81 6,97 8,13
optics 36° Diameter ø m
Distance m 4m 6m 8m 10m 12m 14m
Lux 375 167 94 60 42 31
Source 4 3,73 5,59 7,46 9,32 11,19 13,05
optics 50° Diameter ø m
Distance m 4m 6m 8m 10m 12m 14m
