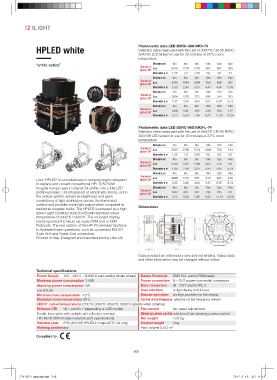

12 ILIGHT

HPLED white Photometric data LED BXRC-30A10K0-73
Statistics rates measured with the use of 3000°K CRI 95 BXRC-
30A10K LED lantern in use for 30 minutes at 25°C room
temperature
“white series” Distance m 4m 6m 8m 10m 12m 14m
Source 4 5016 2229 1254 803 557 409
optics 19° Lux
Diameter ø m 1,20 1,8 2,40 3,0 3,6 4,2
Distance m 4m 6m 8m 10m 12m 14m
Source 4 4375 1944 1094 700 486 357
optics 26° Lux
Diameter ø m 1,65 2,48 3,31 4,41 4,97 5,79
Distance m 4m 6m 8m 10m 12m 14m
Source 4 3094 1375 773 495 344 253
optics 36° Lux
Diameter ø m 2,32 3,48 4,64 5,81 6,97 8,13
Distance m 4m 6m 8m 10m 12m 14m
Source 4 1438 639 359 230 160 117
optics 50° Lux
Diameter ø m 3,73 5,59 7,46 9,32 11,19 13,05

Photometric data LED BXRC-56G10K0-L-74
Statistics rates measured with the use of 5600°K CRI 90 BXRC-
30G10K LED lantern in use for 30 minutes at 25°C room
temperature
Distance m 4m 6m 8m 10m 12m 14m
Source 4 6297 2799 1574 1008 700 514
optics 19° Lux
Diameter ø m 1,20 1,8 2,40 3,0 3,6 4,2
Distance m 4m 6m 8m 10m 12m 14m
Source 4 5156 2292 1289 825 573 421
optics 26° Lux
Diameter ø m 1,65 2,48 3,31 4,41 4,97 5,79
Distance m 4m 6m 8m 10m 12m 14m
Source 4 3828 1701 957 613 425 313
Lites “HPLED” is a revolutionary re-lamping engine designed optics 36° Lux
to replace and convert conventional HPL 575/750W Diameter ø m 2,32 3,48 4,64 5,81 6,97 8,13
tungsten lamps used in original S4 profile, into a fully LED Distance m 4m 6m 8m 10m 12m 14m
Source 4
profile-luminaire. The integral set of achromatic lenses, set in optics 50° Lux 1844 819 461 295 205 151
the optical system, enhances brightness and gives Diameter ø m 3,73 5,59 7,46 9,32 11,19 13,05
consistency of light distribution across the illuminated
surface and provides more light output when compared to
traditional tungsten bulbs. The HPLED is powered by a high Dimensions
power Light Emitting Diode (COB) with standard colour
temperature of 3000°K / 5600°K. The on-board display
board operates the fixture via ready RDM and or DMX
Protocols. The rear section of the HPLED embeds functions
to facilitate fixture operations, such as convenient IN/OUT
5-pin XLR and Power-Con connectors.
Product of Italy. (Designed and manufactured by Lites srl)

Data provided are informatory only and not binding. Values data
and other information may be changed without notice.

Technical specifications
Power Supply 100 – 240 V ~ 50/60Hz auto-setting (single-phase) Datum Protocols DMX 512, and-or RDM ready
Maximun power consumption 170W Power connectors N – OUT power-con neutrik connectors
Stand-by power consumption 5W Data connectors IN – OUT neutrik XRL 5
cos Ø 0,98 User interface 4 digit display and 4 keys
Minimun room temperature -10°C Manual operation via keys provided on the display
Maximum room temperature 35°C Control of led frequency selection of led frequency refresh
LED K° colour temperatures 2700°K; 3000°K; 4000°K; 5600°K (specify when ordering)
Minimun CRI 90 > and 95 > (depending on LED model) Fan control fan speed adjustments
Double lens optics with multiple anti-reflection coatings Dimming curves control selection of two dimming curves control
LED life 50.000 Hrs (see manufacturer’s specifications) Net weight 2,03 kg
Protection grade IP20 (HOUSE HPLED in original ETC S4 only) Packed weight 3 kg
Working positionany Pack volume 0,012 m³

Compliant to :
