11 KUPO

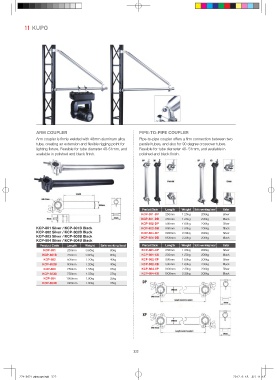

ARM COUPLER PIPE-TO-PIPE COUPLER
Arm coupler is firmly welded with 48mm aluminum alloy Pipe-to-pipe coupler offers a firm connection between two
tube, creating an extension and flexible rigging point for parallel tubes, and also for 90 degree crossover tubes.
lighting fixture. Feasible for tube diameter 48-51mm, and Feasible for tube diameter 48- 51mm, and available in
available in polished and black finish. polished and black finish.

Product Code Length Weight Safe working load Color
KCP-801-DP 250mm 1.25kg 200kg Silver
KCP-801-DB 250mm 1.25kg 200kg Black
KCP-802-DP 500mm 1.60kg 200kg Silver
KCP-801 Silver / KCP-801B Black KCP-802-DB 500mm 1.60kg 200kg Black
KCP-802 Silver / KCP-802B Black KCP-804-DP 1000mm 2.30kg 200kg Silver
KCP-803 Silver / KCP-803B Black
KCP-804-DB 1000mm 2.30kg 200kg Black
KCP-804 Silver / KCP-804B Black
Product Code Length Weight Safe working load Product Code Length Weight Safe working load Color
KCP-801 250mm 0.85kg 80kg KCP-801-XP 250mm 1.25kg 200kg Silver
KCP-801B 250mm 0.85kg 80kg KCP-801-XB 250mm 1.25kg 200kg Black
KCP-802 500mm 1.20kg 40kg KCP-802-XP 500mm 1.60kg 200kg Silver
KCP-802B 500mm 1.20kg 40kg KCP-802-XB 500mm 1.60kg 200kg Black
KCP-803 750mm 1.55kg 37kg KCP-804-XP 1000mm 2.30kg 200kg Silver
KCP-803B 750mm 1.55kg 37kg KCP-804-XB 1000mm 2.30kg 200kg Black
KCP-804 1000mm 1.90kg 25kg
KCP-804B 1000mm 1.90kg 25kg

322
