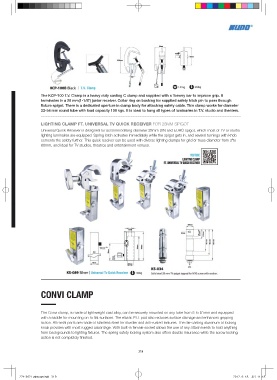

The KCP-100 T.V. Clamp is a heavy duty casting C clamp and supplied with a Tommy bar to improve grip. It
terminates in a 28 mm(1-1/8”) junior receiver. Collar ring on bushing for supplied safety hitch pin to pass through
fixture spigot. There is a dedicated aperture in clamp body for attaching safety cable. This clamp works for diameter
22-54 mm round tube with load capacity 100 kgs. It is ideal to hang all types of luminaries in T.V. studio and theaters.

LIGHTING CLAMP FT. UNIVERSAL TV QUICK RECEIVER FOR 28MM SPIGOT
Universal Quick Receiver is designed for accommodating diameter 28mm DIN and EURO spigot, which most of TV or studio
lighting luminaires are equipped. Spring latch activates immediately while the spigot gets in, and several turnings with knob
cements the safety further. This quick receiver can be used with diverse lighting clamps for grid or truss diameter from 2”to
60mm, and ideal for TV studios, theatres and entertainment venues.

CONVI CLAMP

The Convi clamp, is made of lightweight cast alloy, can be securely mounted on any tube from 5 to 51mm and equipped
with a saddle for mounting on to flat surfaces. The elastic P.U. pad also reduces surface damage and enhances gripping
action. All metal parts are made of stainless steel for sturdier and anti-rusted features. The die-casting aluminum of locking
knob provides with most rugged advantage. With built-in female socket allows the use of any attachments to hold anything
from backgrounds to lighting fixtures. The spring safety locking system also offers double insurance while the screw locking
action is not completely finished.
