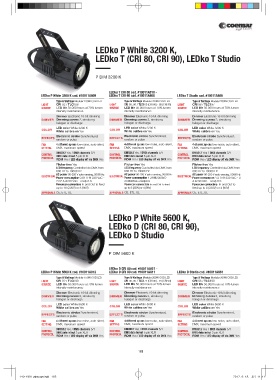

LEDko P White 3200 K,
LEDko T (CRI 80, CRI 90), LEDko T Studio
P DIM 3200 K
LEDko T CRI 80 cod. #10011A818 -
LEDko P White 3200 K cod. #10011A809 LEDko T CRI 90 cod. #10011A808 LEDko T Studio cod. #10011A868
Type & Wattage Modular 150W COB LED Type & Wattage Modular 200W COB LED Type & Wattage Modular 200W COB LED
LIGHT CRI 92 / TLCI 88 LIGHT CRI 80, 90 / TLCI 65 (CRI 80) - 88 (CRI 90) LIGHT CRI 96 / TLCI 97
SOURCE LED life 50.000 hours at 70% lumen SOURCE LED life 50.000 hours at 70% lumen SOURCE LED life 50.000 hours at 70% lumen
intensity maintenance intensity maintenance intensity maintenance
Dimmer Electronic 16-bit dimming Dimmer Electronic 16-bit dimming Dimmer Electronic 16-bit dimming
DIMMER Dimming curves 2, simula ng DIMMER Dimming curves 2, simula ng DIMMER Dimming curves 2, simula ng
halogen or discharge halogen or discharge halogen or discharge
LED color White 3200 K LED color White 3200 K LED color White 3200 K
COLOR White calibra on Yes COLOR White calibra on Yes COLOR White calibra on Yes
Electronic strobe Synchronized, Electronic strobe Synchronized, Electronic strobe Synchronized,
EFFECTS random or pulse EFFECTS random or pulse EFFECTS random or pulse
FAN 4 different op ons low-noise, auto-silent, FAN 4 different op ons low-noise, auto-silent, FAN 4 di erent op ons low-noise, auto-silent,
SETTING DMX, maximum speed SETTING DMX, maximum speed SETTING DMX, maximum speed
DMX512 Yes / DMX channels 5/1 DMX512 Yes / DMX channels 5/1 DMX512 Yes / DMX channels 5/1
CONTROL DMX data in/out 5 pin XLR CONTROL DMX data in/out 5 pin XLR CONTROL DMX data in/out 5 pin XLR
PROTOCOL RDM Yes / LED display off via DMX Yes PROTOCOL RDM Yes / LED display off via DMX Yes PROTOCOL RDM Yes / LED display off via DMX Yes
Flicker free Yes Flicker free Yes Flicker free Yes
LED frequency Controlled via DMX from LED frequency Controlled via DMX from LED frequency Controlled via DMX from
600 Hz to 19000 Hz 600 Hz to 19000 Hz 600 Hz to 19000 Hz
AC power 90-250 V auto-sensing, 50/60 Hz AC power 90-250 V auto-sensing, 50/60 Hz AC power 90-250 V auto-sensing, 50/60 Hz
ELECTRICAL Power consumption 0.81 A @ 230 VaC - ELECTRICAL Power consumption 1.2A@230VaC- ELECTRICAL Power consump on 1.2 A @ 230 VaC - 3
2.07 A @ 90 VaC - cosφ 0.9 3A@90VaC-cosφ0.9 A @ 90 VaC - cosφ 0.9
Powercon connectors In and Out to feed Powercon connectors In and Out to feed Powercon connectors In and Out to
up to 16 (230V) or 8 (90V) up to 8 (230V) or 4 (90V) feed up to 8 (230V) or 4 (90V)
APPROVALS CE, ETL, UL APPROVALS CE, ETL, UL APPROVALS CE, ETL, UL
LEDko P White 5600 K,
LEDko D (CRI 80, CRI 90),
LEDko D Studio
P DIM 5600 K
LEDko D CRI 80 cod. #10011A821 -
LEDko P White 5600 K cod. #10011A812 LEDko D CRI 90 cod. #10011A811 LEDko D Studio cod. #10011A861
Type & Wattage Modular 150W COB LED Type & Wattage Modular 200W COB LED Type & Wattage Modular 200W COB LED
LIGHT CRI 92 / TLCI 90 LIGHT CRI 80, 90 / TLCI 72 (CRI 80) - 91 (CRI 90) LIGHT CRI 96 / TLCI 98
SOURCE LED life 50.000 hours at 70% lumen SOURCE LED life 50.000 hours at 70% lumen SOURCE LED life 50.000 hours at 70% lumen
intensity maintenance intensity maintenance intensity maintenance
Dimmer Electronic 16-bit dimming Dimmer Electronic 16-bit dimming Dimmer Electronic 16-bit dimming
DIMMER Dimming curves 2, simula ng DIMMER Dimming curves 2, simula ng DIMMER Dimming curves 2, simula ng
halogen or discharge halogen or discharge halogen or discharge
LED color White 5600 K LED color White 5600 K LED color White 5600 K
COLOR White calibra on Yes COLOR White calibra on Yes COLOR White calibra on Yes
Electronic strobe Synchronized, Electronic strobe Synchronized, Electronic strobe Synchronized,
EFFECTS random or pulse EFFECTS random or pulse EFFECTS random or pulse
FAN 4 different op ons low-noise, auto-silent, FAN 4 different op ons low-noise, auto-silent, FAN 4 di erent op ons low-noise, auto-silent,
SETTING DMX, maximum speed SETTING DMX, maximum speed SETTING DMX, maximum speed
DMX512 Yes / DMX channels 5/1 DMX512 Yes / DMX channels 5/1 DMX512 Yes / DMX channels 5/1
CONTROL DMX data in/out 5 pin XLR CONTROL DMX data in/out 5 pin XLR CONTROL DMX data in/out 5 pin XLR
PROTOCOL RDM Yes / LED display off via DMX Yes PROTOCOL RDM Yes / LED display off via DMX Yes PROTOCOL RDM Yes / LED display off via DMX Yes
